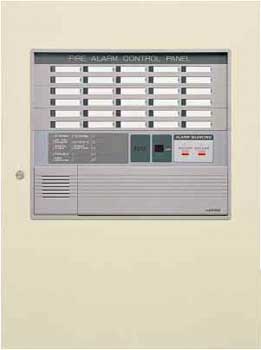

Trung tâm báo cháy Nohmi FAP129N-10L/20L

- Save-cost and save-space.
- Available for 10 and 20 fire alarm zones.
- Conventional type.
- Alarm verification type.
- Name plate and a digital display for alarmed zones.
- Programmable output signal.
- Ni-Cd stand-by battery built in.
- Handset built in for maintenance.
- Programmable function at site.
- Automatic self-checking.
- Various test facilities for maintenance.
- Surge arrester built in for power lines.

DESCRIPTION.
The FAP129N series fire alarm panel was developed to provide a cost- and
space-saving conventional fire alarm panel together with more user-oriented
functions..
The size of the panel is approximately one-half the depth, one-half the area,
one-fourth the volume, and one-fifth the weight of our last 20-zone fire alarm
panel..
The cabinet is made of ABS resin with non-flammability to UL-94V2.

Alarm inputs
Conventional fire detectors and manual alarm boxes are connected to alarm input
circuits to give visual and audible alarm at the panel and to actuate alarm
bells. The FAP129N series fire alarm panel has a line-up of 10 and 20 alarm
input circuits (zones)..

Each alarm circuit has an alarm verification function.

Auxiliary inputs
Three auxiliary input signals can be connected to auxiliary input circuits to be
displayed it on the panel. They may be used for non-alarm input signals..

Signal outputs
2 representative alarm signals are available.
10 voltage-free contacts are available for signal output..
A group of output signal for an Annunciator Panel..
A group of signals for a Fire Pump Starting Relay Box.

Digital display
The 2-digit digital indicator displays not only alarming zones but also trouble
which happened in the fire alarm panel and in the system.

Alarm bell activation

There are 2 modes to activate alarm bells. One is to actuate all alarm bells at
the same time, called general alarm. The other is to actuate a group of alarm
bells depending on the location of a fire, called localized alarm.

One pair of terminals is available for the general alarm. The programmable 10
voltage-free contacts are used for the localized alarm.

Automatic self-checking

The following are automatically monitored at all time.
Detector circuits for continuity.
Connection of the battery and fuse blown-out.
Microcomputer chip and memory chips for abnormal running.
Main fuses for blown-out.
Connectors and signal transmission circuits for interruption of communication
between PCB's.
Main circuit voltage for over limit and under limit.
The alarm input circuits are automatically checked once a week for normal
operation..

Programming

The following are programmable for setting and canceling with a template on the
panel.
Non used-alarm input circuits without putting dummy loads.
Alarm verification function to alarm-input circuits.
Interlocking auxiliary input signals with an audible alarm at the panel.
Interlocking alarm input signals with representative alarm signals.
An audible alarm at the panel during main power off.
Interlocking alarm input signals with 10 voltage-free contact outputs.

Fire protection-related device control

FAP129N series fire alarm panel has only fire alarm functions. FCS129N series
fire alarm panel is available not only for fire alarm functions but also control
functions for fire protection-related devices such as smoke vents, fire
extinguishing system etc..
